Features:
1. high-precision end pre-bending;
2. NC and high production efficiency;
3. products with preeminent precision;
4. sate operation
5. structure of whole set with simple base and convenience for movement;
6. multiple use with correspondent control;
7. rich in bending shape,
Main features:
1. Superior precision products
2.Unique bending process, high-precision end pre-bending, bending process
digital control.
3.Man-machine dialogue control interface, intelligent and efficient operation
4. The physics bending process software, man-machine dialogue window, bending process automatic compensation
5.Single operation convenient, efficient and safe.
Rich curved shape, with a rolling type O, U-shaped, multi-stage R different shapes.
7. Choice of models, depending on the application or user requirements, with digital models of the economy, TNC: CNC models selected
NO. | ITEMS | PARAMETER | UNIT | REMARK |

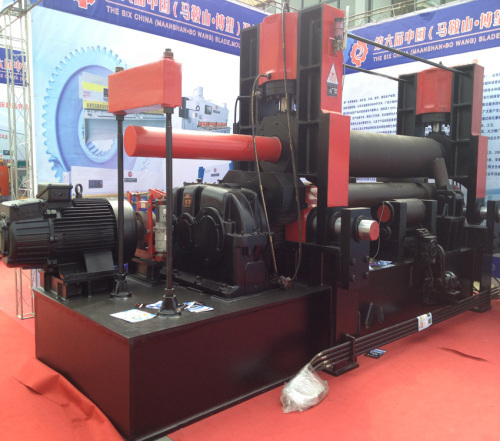

1 | model | W11-12×3000 | 1set |
2 | Max thickness of Steel Plate | 12 | mm | |
3 | Max width of roll board | 3000 | mm | |
4 | Plate Speed | 6 | m/min | |
5 | Full Loading Diameter of Coiled Plate | 750 | mm | |
6 | Up roll diameter | 300 | mm | |
7 | Down roll diameter | 240 | mm |
8 | Main Motor Power | 22 | kw | |
9 | Size | L | 5550 | mm | |
W | 1400 | mm |
H | 1700 | mm | |
10 | Weight | 12000 | kg | |
