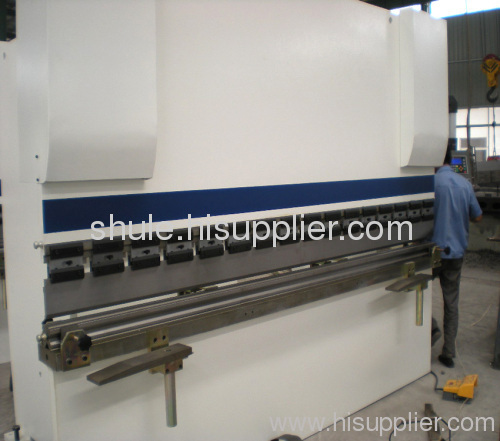

WC67Y series bending machine performance characteristics:
1.The bending machine uses steel welded structure, vibration to eliminate stress, high strength of the machine, with good rigidity.
2. Hydraulic drive, smooth and reliable
3. mechanical block, torsional axis synchronization, high precision.
4.After back gauge distance on the slide stroke electrically adjustable, manual fine-tuning, digital display (using the German counter).
5.Upper die with deflection compensation mechanism under deflection compensation institutions, more than 250 tons.

NO	ITEMS		PARAMETER	UNIT
1	Specification		WC67Y-200/3200	1set
2	Nominal Pressure		200	kn
3	Ram Stroke		200	mm
4	Travel Times		≥3	Per/min
5	Distance between uprights		2800	mm
6	Throat Dephts		320	mm
7	Length of working table		3200	mm
8	Main Motor Power		11	kw
9	Size	L	3280	mm
W	1930	mm
H	2800	mm
10	Weight		13000	kg
