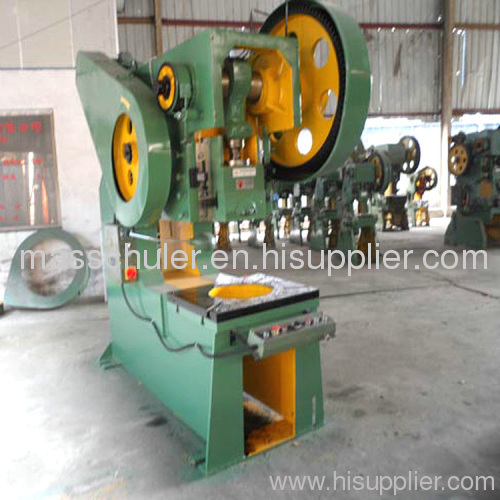

J21S Series Fixed Table Deep Throat Press J21S-25 Shule

Price: 4500.0~4824.0 USD
Payment Terms: T/T,L/C
Place of Origin: Anhui, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: J21S-25
Packing: wooden cases
Production Capacity: 10 sets per week
Delivery Date: 30 days

1.the strength and stiffness better, economic and durable
2.simple structure, excellent versatility, maintenance and operation is convenient.

Main function & features:
1.Its throat depth is more than twice of common machine, more convenient when producing case, cabinet, door, cover and other large panel spare parts;
2.Steel-welded C-frame body, ageing treatment, high rigidity, stable precision
3. Crossed crankshaft, V-type guides of the slide realize high accuracy guidance;
4.Turn-key and rigid clutch realize flexible movement and reliable performance;
5.Press-collapse block device, to ensure safety in press operation;
6.Optional photoelectric protector, feeder and other optional accessories are available for Composition nc step blunt press
Optional configuration:
1.Photoelectric protector
2.Uncoiler, leveling machine and feeding device
3. Air cushion
NO.
ITEMS
PARAMETER
UNITS
1
Model
J21S-25
1set
2
Nominal Force
250
KN
3
Ram Stroke
70
mm
4
Travel Times
120
Per min
5
Bottom size of sliding block
Φ40
mm
6
Throat depth
190
mm
7
Distance from slide block centre to the frame
260
Mm
8
Main Motor Power
3
kw
10
Size
L
1780
mm
W
890
mm
Height
2240
mm
11
Weight
2760
kg
