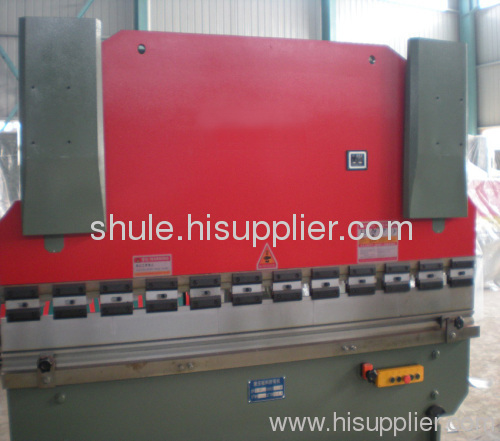

High quality sheet metal press brake WC67Y-100/4000

Price:	20000.0~21801.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Anhui, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: WC67Y-100/4000

Packing: covered with wooden cases

Power: Cnc

Machine Type: Beading Machine

Automation: Automatic

Material / Metal Processed: Others

Production Capacity: 10 sets per day

Delivery Date: 15 days

Raw Material: Steel Bar

Extra Services: Machining

Certification: ISO 9001:2000

Brand Name: Shule

1.high quality steel plate welding structure,
2.vibration aging stress relief,
3.machine for high strength and rigidity,

1. This machine adopts hydraulic electric control, slide stroke can be arbitrary regulation, and have the point start, semi-automatic, automatic action such as standard, the inching specification can easily test mode and adjustment.

2. The acting bending machine design, double oil cylinder work together at the same time, the operation is balance, convenient, safety.

3. Have the next dead when rolling function, to ensure the accuracy of the workpiece.

4. Manual regulation stroke (can convert automatic adjustment stroke)

NO	ITEMS		PARAMETER	UNIT
1	Specification		WC67Y-100/4000	1set
2	Nominal Pressure		1000	kn
3	Ram Stroke		150	mm
4	Travel Times		≥8	Per/min
5	Distance between uprights		3200	mm
6	Throat Dephts		320	mm
7	Length of working table		4000	mm
8	Main Motor Power		7.5	kw
9	Size	L	4060	mm
W	1320	mm
H	2760	mm
10	Weight		9000	kg
