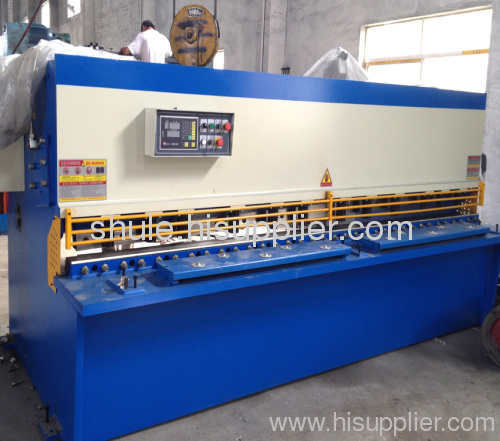

Pendulum Plate Shears from China manufacturer - Anhui Shule CNC Machine Tool Co.Ltd

Price:	32000.0~35288.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Anhui, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: QC12Y-12X3200

Packing: covered with wooden cases

Production Capacity: 10 sets per day

Delivery Date: 15 days

1.speed, high accuracy, good stability
2.Protective fence and electrical interlocks to ensure safe operation

Features:

1. The mainframe is fitted with numeric-control system special for shearing machines.

2. The position of rear stopper is displayed in a real-time manner.

3. Multi-step programming function is avaiable and the rear stopper is able for automatic operation and continous positioning,to achieve an automatic adjustment for position of rear stopper.

4. It is provided with counting function for shearing,to display the shearing numbers in a real-time manner ,able for power-failure memory of position of rear stopper,procedures,and parameters.

5. Imported ball bearing lead scew and linear guide rail are used,to ensure the positioning precision,sothat the processing precison of machine is higher.

NO.	ITEMS		PARAMETER	UNITS	REMARK
1	Model		QC12Y-12X3200	1
2	Shearing thichness		12	mm
3	Shearing Width		3200	mm
4	Travel Times		10	min-1
5	Shearing Angler		1°40′	°
6	Backgauge Distance		20-600	mm
7	Main Motor Power		18.5	kw
8	Size	L	3900	mm
		W	2127	mm
		H	2235	mm
9	Weight		11600	kg
