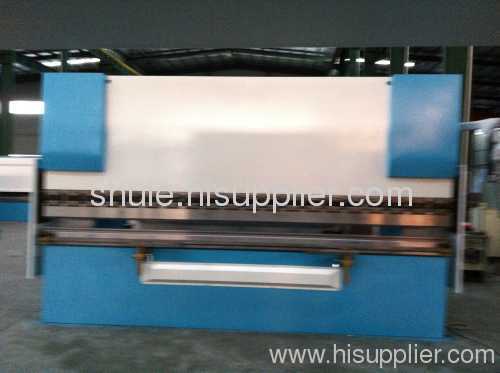

hydraulic cnc press brake machine 250T sheet metal bending machine WC67Y-250T 4000mm WC67Y-250/4000 manufacturer from China Anhui Shule CNC Machine Tool Co.Ltd

hydraulic cnc press brake machine 250T sheet metal bending machine WC67Y-250T 4000mm

Price:	60000.0~65723.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Anhui, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: WC67Y-250/4000

Packing: wooden cases

Power: Hydraulic

Machine Type: Beading Machine

Automation: Automatic

Material / Metal Processed: Others

Production Capacity: 10 sets per day

Delivery Date: 30 days

Raw Material: Steel Bar

Extra Services: Machining

Certification: ISO 9001:2000

Brand Name: Shule

1.Steel welded structure
2.High strength and good rigidity

Performance

1 All steel welded structure, vibrating treatment of ageing for removal of internal stress with high strength and good rigidity.

2 Torsion shaft forced synchronization of mechanical limit stopper balance with high precision.

3 Integrated hydraulic transmission system, large range of speed regulation to transmission of the sliding block, stable and reliable performance.

4 Rear stopper and the sliding block have electrical adjustment for their stroke with manual fine tuning and digital indication.

5 Adjustment mechanism of sliding block independent from oil cylinder assembly to enhance sealing effect upper mold is fitted with titling warp offset mechanism.

6 Multi machine combined operation is possible.

7 Safe guide is optional.

sell service

1,the suppliers offer operation manual and quality certification

2,the suppliers offer one set of wear Annex and one set of installation and maintenance tools.

3,guarantee :one year as from the date of installation and acceptance.

payment ,30% T/T as advance, 70% T/T before delivery.

delivery time 30 days.

NO	ITEMS		PARAMETER	UNIT
1	Specification		WC67Y-250/4000	1set
2	Nominal Pressure		250	kn
3	Ram Stroke		250	mm
4	Travel Times		≥3	Per/min
5	Distance between uprights		2620	mm
6	Throat Dephts		400	mm
7	Length of working table		4000	mm
8	Main Motor Power		18.5	kw
9	Size	L	4070	mm
W	2000	mm
H	3260	mm
10	Weight		20500	kg
