Hydraulic Press Brake WC67Y-160/3200 cnc bending machine with good quality WC67Y-160/3200 manufacturer from China Anhui Shule CNC Machine Tool Co.Ltd

Hydraulic Press Brake WC67Y-160/3200 cnc bending machine with good quality

Price:	30000.0~32060.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Anhui, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: WC67Y-160/3200

Packing: wooden cases

Power: Cnc

Machine Type: Beading Machine

Automation: Automatic

Material / Metal Processed: Others

Production Capacity: 10 sets per day

Delivery Date: 30 days

Raw Material: Steel Bar

Extra Services: Machining

Certification: ISO 9001:2000

Brand Name: Shule

1.Hydraulic drive, smooth and reliable.
2 mechanical block, torsional axis synchronization, high precision.

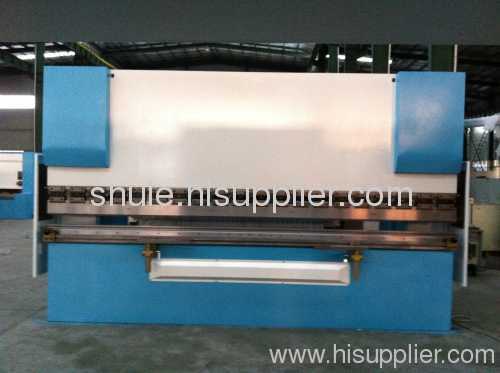

Hydraulic Press Brake WC67Y-160/3200

CNC Bending Machine

Performance:

Main body adopts WC67Y Series Press Brake;
Back gauge(X) range of slide block(Y) are controlled by computer automatically;
Back gauge adopts ordinary screw mandrel and precision screw mandrel.

Hydraulic top-drive, steadiness and reliability. Mechanical stop, steel torsion bar to maintain synchronization, high precision;

Travel limit protection. Full machine guarding with safety interlocker

Technical data(can be provided as customers request for special model).

Name	Data	Unit
Nominal pressure	1600	kn
Length of working table	3200	mm
Distance between vertical columns	3000	mm
Depth of throat	320	mm
Ram stroke	200	mm
Main motor power	11	Kw
