Shule High quality Hydraulic/cnc bending machine famous brand press brake WC67Y-40/2500 manufacturer from China Anhui Shule CNC Machine Tool Co.Ltd

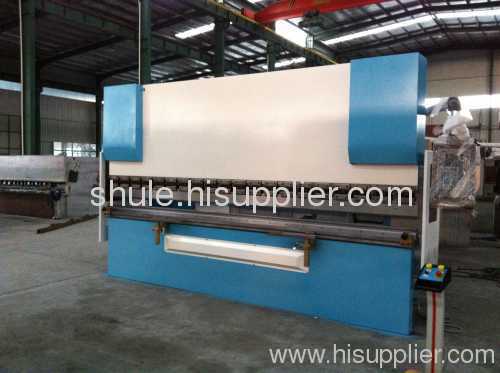

Shule High quality Hydraulic/cnc bending machine famous brand press brake

Price:	9000.0~10099.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Anhui, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: WC67Y-40/2500

Packing: covered with wooden cases

Production Capacity: 10 sets per day

Delivery Date: 15 days

1, the frame adopts full steel overall welding structure
excellent rigidity, excellent resistance to distortion

Characteristics of the bending machine:
1 hydraulic bending machine slow decline in the control function, the operator can better control the workpiece

2 high quality steel plate welding structure, vibration aging stress relief, machine for high strength and rigidity, rack can keep the stable deformation

3. Feed is fast approaching, pressure, fast return function.

4. Backgauge distance and on the slide stroke with electric adjustment, digital display, with manual fine-tuning

5 hydraulic bending machine. Hydraulic transmission assurance work, not because of changes in the thickness of the sheet metal, in addition, the machine work smooth, easy operation, low noise, safe and reliable.

6 hydraulic bending machine. Oil cylinder of a mechanical stop, ensure that block step to bottom dead center repetitive positioning accuracy, to ensure the mass production when the bending angle consistency.
7. Hydraulic bending machine adopts Germany technology to eliminate internal stress.

The machine is widely used in automobiles, machinery, shipbuilding, electronics, light industry and decoration industry for sheet metal bending forming

NO.	ITEMS		PARAMETER	UNIT
1	Specification		WC67Y-40/2500	1set
2	Nominal Pressure		400	kn
3	Ram Stroke		100	mm
4	Travel Times		≥11	Per/min
5	Distance between uprights		2055	mm
6	Throat Dephts		250	mm
7	Length of working table		2500	mm
8	Main Motor Power		5.5	kw
9	Size	L	2560	mm
		W	1100	mm
		H	1920	mm
10	Weight		3500	kg
