J21S Series Fixed Table Deep Throat Press J21S-10 J21S-10 manufacturer from China Anhui Shule CNC Machine Tool Co.Ltd

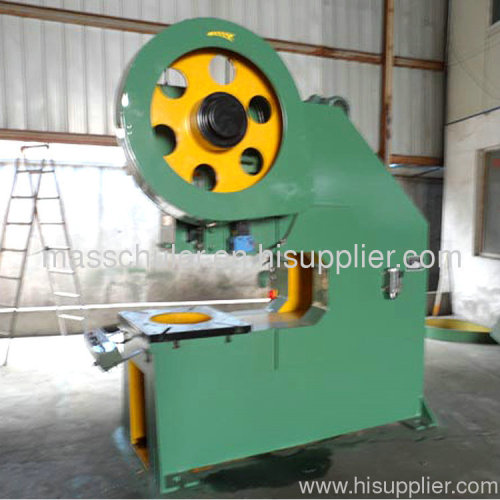

J21S Series Fixed Table Deep Throat Press J21S-10

Price:	1600.0~2000.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Anhui, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: J21S-10

Packing: wooden cases

Production Capacity: 10 sets per week

Delivery Date: 30 days

1.the strength and stiffness better, economic and durable
2.simple structure, excellent versatility, maintenance and operation is convenient.

The series press is particularly suitable hardware and electronic micro-motor industry. Equipped with automatic feeding device can achieve high efficiency, high precision stamping production.

1.enhance the fuselage of welded steel plate, steel is good;
2.stepless speed, easy to operate;
3.Electrical PLC control, high reliability; smooth transmission, low noise;
4.low inertia clutch, combined with smooth, rapid braking;
5.aerodynamic balance device;
6.machine automatic cycle timing, location, quantitative thin oil lubrication, lubrication and full uniform and reliable;
7.gas line safe double valve, sensitive, safe and reliable


NO.	ITEMS		PARAMETER	UNITS
1	Model		J21S-10	1set
2	Nominal Force		100	KN
3	Ram Stroke		60	mm
4	Travel Times		145	Per min
5	Bottom size of sliding block		Φ30	mm
6	Throat depth		400	mm
7	Distance from slide block centre to the frame		260	Mm
8	Main Motor Power		1.1	kw
10	Size	L	1395	mm
		W	1680	mm
		Height	1500	mm
11	Weight		2760	kg
